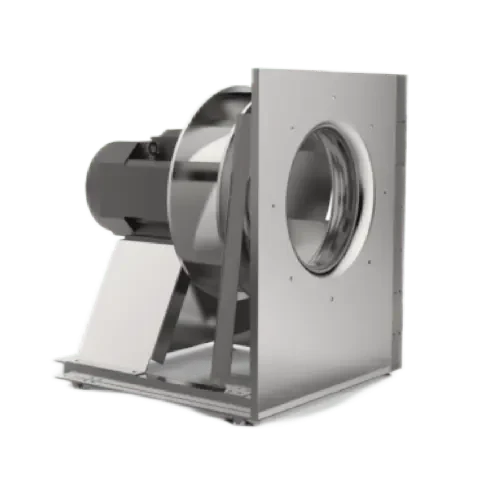

PANKA FanPengke PLF Centrifugal Fan (EC/AC)
The PLF series features PANKA's plug centrifugal fans, which use a direct-coupled motor design with the impeller mounted directly on the motor shaft. By removing the traditional scroll casing and belt drive, this design delivers high overall efficiency and minimal maintenance requirements. Key performance specs include a maximum airflow of 120000m³/h, max pressure of 4500Pa, peak static efficiency of 79%, and peak total efficiency of 83%. Impeller diameters range from 250mm to 1250mm and are available in aluminum alloy, carbon steel, or stainless steel to handle general ventilation, dusty media, and corrosive environments. The EC version uses an electronically commutated motor, supporting 0-10V/PWM stepless speed control and intelligent group control for superior part-load efficiency. The AC version is compatible with both line-frequency and variable frequency drives, simplifying retrofits for existing systems. Typical applications include large industrial air handling units, packaged air conditioning units, and process supply/exhaust systems. Products are AMCA and CE certified.
Technical Specifications
- Max Airflow120000m³/h
- Maximum Pressure4500 Pa
- Maximum Static Pressure Efficiency79%
- Maximum total pressure efficiency83%
- Impeller Diameter250mm~1250mm
- Impeller MaterialAluminum alloy, carbon steel, stainless steel
- Structure TypeVoluteless motor direct-coupled design
- Drive TypeEC electronically commutated motors / AC motors (compatible with VFDs)
- Speed Control Method0-10V, PWM stepless speed control (EC type)
- Ingress Protection RatingIP4
- VerifyAMCA, CE
Key Advantages
Casingless motor direct-drive design eliminates belt transmission, reducing maintenance points.
Maximum static pressure efficiency: 79%, maximum total pressure efficiency: 83%
Impeller diameter 250mm~1250mm, covering high-airflow operating conditions.
Impeller material options: aluminum alloy, carbon steel, stainless steel.
EC model supports stepless speed control from 0 to 1 V/PWM and group control.
Certified by AMCA Performance and CE
Use Cases
Large Industrial Air Handling Units
Combined Air Handling Unit (AHU/PAU/MAU)
Process Supply and Exhaust Air System
Large-airflow supply for cleanroom facilities
Pengke PLF Centrifugal Fan Selection Parameters
← Swipe left or right to view full parameters; first column is fixed
| Parameter | Numeric | Description |
|---|---|---|
| Max Airflow | 120000m³/h | Series limit, corresponding to the maximum impeller setting |
| Maximum Pressure | 4500 Pa | Maximum static pressure (series) |
| Maximum Static Pressure Efficiency | 79% | Sample Label Value |
| Maximum total pressure efficiency | 83% | Sample Label Value |
| Impeller Diameter | 250mm~1250mm | Series Coverage |
| Impeller Material | Aluminum alloy, carbon steel, stainless steel | Select based on dust content and corrosiveness of the medium |
| Structural Form | Plug Fan Motor Direct Drive | Eliminates belt drive for fewer maintenance points |
| Drive Type | EC Electronically Commutated Motors / AC Motors | AC Variable Frequency Drive (VFD) with Optional Configuration |
| Speed Control Method | 0-10V, PWM stepless speed control | EC Model Standard Configuration |
| Ingress Protection Rating | IP4 | Indoor Standard Environment |
| Verify | AMCA, CE | AMCA Performance Certification |
The "Impeller Diameter and Airflow Ranges" column provides reference intervals based on the PLF series' maximum performance (120000m³/h, 4500Pa) for initial model selection. Final selection must be verified against manufacturer performance curves and site duct resistance calculations.
Download
Pengke PLF Centrifugal Fan (EC/AC)Product Catalog (PDF) – Download for full technical specs, installation dimensions, and selection tables.
Pengke PLF Centrifugal Fan (EC/AC)Product Catalog
PDF Document · Free Public Download
