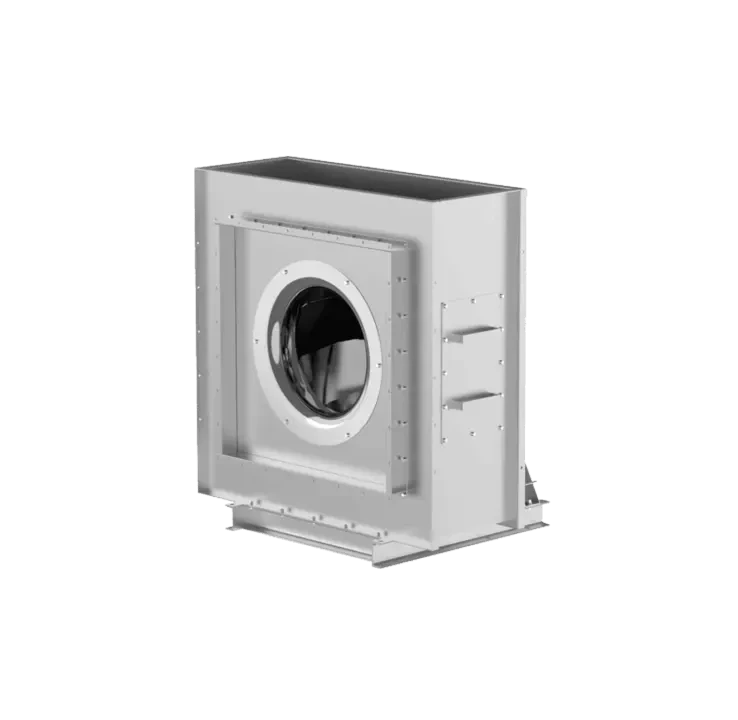

PANKA FanPengke PLFE Centrifugal Exhaust Fan (EC/AC)
The PLFE series is PANKA's centrifugal exhaust fan designed for oil fume and high-temperature flue gas applications. Building on the PLF shell-less design, it features an easy-clean structure that allows rapid disassembly of the impeller and housing to prevent oil buildup, which can reduce airflow and cause dynamic imbalance. Key performance specs include a maximum airflow of 120000m³/h, max pressure of 4500Pa, peak static efficiency of 79%, and peak total efficiency of 83%. Impeller diameters range from 225mm to 1250mm, with material options including aluminum alloy, carbon steel, and stainless steel. The product holds fire safety certification and ATEX explosion-proof certification. It is suitable for commercial kitchen exhaust, canteen ventilation, and fire smoke extraction systems. The EC version supports stepless speed control, automatically adjusting exhaust volume based on kitchen load and flue gas concentration to reduce energy consumption.
Technical Specifications
- Max Airflow120000m³/h
- Maximum Pressure4500 Pa
- Maximum Static Pressure Efficiency79%
- Maximum total pressure efficiency83%
- Impeller Diameter225mm~1250mm
- Impeller MaterialAluminum alloy, carbon steel, stainless steel
- Structure TypeCasingless motor direct drive with easy-clean design
- Drive TypeEC Electronic Commutation Motor / AC Motor
- Ingress Protection RatingIP4
- VerifyFire safety product certification, ATEX explosion-proof certification, CE
Key Advantages
Easy-clean design: impeller and housing detach quickly for cleaning.
Certified for fire safety; suitable for smoke exhaust systems.
ATEX certified for use with hydrocarbon media
Maximum static pressure efficiency: 79%, maximum total pressure efficiency: 83%
Impeller material: stainless steel (oil-resistant and corrosion-resistant)
EC models feature stepless speed control and automatically adjust exhaust volume based on load.
Use Cases
Commercial Kitchen and Cafeteria Grease Exhaust
Fire smoke exhaust system
Explosion-proof ventilation for hydrocarbon-bearing media
Centralized exhaust for dining complexes
Pengke PLFE Exhaust Centrifugal Fan Selection Parameters
← Swipe left or right to view full parameters; first column is fixed
| Parameter | Numeric | Description |
|---|---|---|
| Max Airflow | 120000m³/h | Series limit, corresponding to the maximum impeller setting |
| Maximum Pressure | 4500 Pa | Maximum static pressure (series) |
| Maximum Static Pressure Efficiency | 79% | Sample Label Value |
| Maximum total pressure efficiency | 83% | Sample Label Value |
| Impeller Diameter | 225mm~1250mm | Series Coverage |
| Impeller Material | Aluminum alloy, carbon steel, stainless steel | For oily fume conditions, stainless steel is recommended. |
| Structural Form | Sleeveless motor direct drive, easy-clean design | Quick-disassembly and cleaning of impeller and casing |
| Drive Type | EC Electronically Commutated Motors / AC Motors | EC model supports stepless speed regulation |
| Ingress Protection Rating | IP4 | Indoor Standard Environment |
| Verify | Fire safety product certification, ATEX explosion-proof certification, CE | Suitable for fire smoke exhaust and oil/gas media |
The "Impeller Diameter and Airflow Tiering" table provides reference ranges based on the PLFE series' maximum performance (120000m³/h, 4500Pa) for initial model tier selection. Final selection must be based on the manufacturer's performance curves, kitchen exhaust volume standards, and site duct resistance calculations.
Download
Pengke PLFE Centrifugal Exhaust Fan (EC/AC)Product Catalog (PDF) – Download for full technical specs, installation dimensions, and selection tables.
Pengke PLFE Centrifugal Exhaust Fan (EC/AC)Product Catalog
PDF Document · Free Public Download
