PANKA FanPengke PLFB Centrifugal Supply and Exhaust Fan Unit (EC/AC)

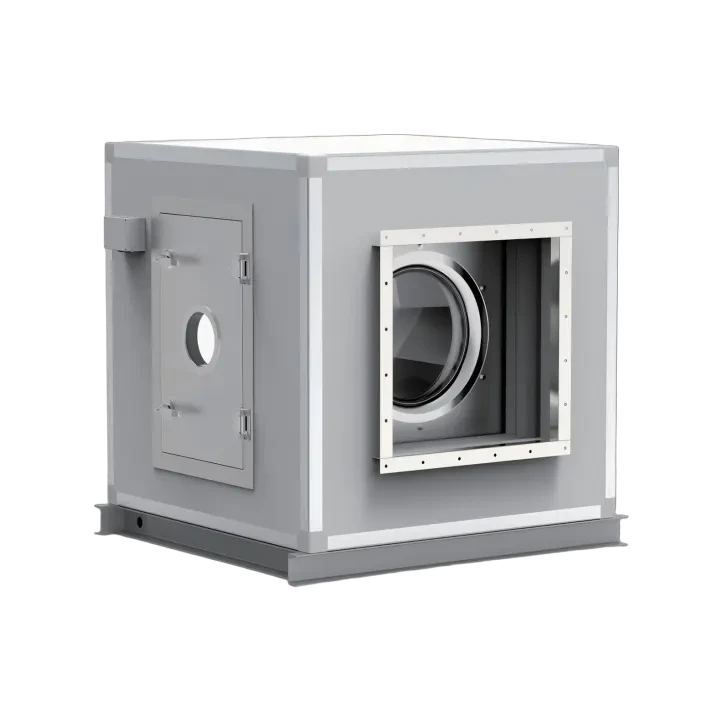

The PLFB series is PANKA's centrifugal supply and exhaust fan unit, integrating the centrifugal fan, motor, and housing into a single assembly. Its quick-release housing design allows for rapid removal of the access door and impeller module, simplifying on-site maintenance and cleaning. Performance highlights include a maximum airflow of 100000m³/h, maximum pressure of 4500Pa, peak static efficiency of 79%, and peak total efficiency of 83%. Impeller diameters range from 250mm to 1250mm, with material options including aluminum alloy, composite materials, carbon steel, and stainless steel. The housing features integrated inlet and outlet flanges for direct connection to duct systems, eliminating the need for on-site fan room construction and vibration isolation foundations. The EC version supports stepless speed control and centralized group management, making it ideal for ducted supply/exhaust applications, underground mechanical room ventilation, and building fresh air and exhaust systems.
Technical Specifications
- Max Airflow100000m³/h
- Maximum Pressure4500 Pa
- Maximum Static Pressure Efficiency79%
- Maximum total pressure efficiency83%
- Impeller Diameter250mm~1250mm
- Impeller MaterialAluminum alloy, composite materials, carbon steel, stainless steel
- Structure TypeMonolithic chassis with quick-release maintenance design
- Drive TypeEC Electronic Commutation Motor / AC Motor
- API FormThe enclosure features built-in inlet and outlet flanges.
- Ingress Protection RatingIP4
- VerifyCE, AMCA (optional)
Key Advantages
Quick-release housing design for easy inspection and cleaning
Fan and cabinet supplied as a complete unit; minimal on-site installation required.
Maximum static pressure efficiency: 79%, maximum total pressure efficiency: 83%
Impeller material options: aluminum alloy, composite, carbon steel, stainless steel.
Unit includes built-in flanges for direct connection to duct systems.
EC models support stepless speed control and multi-unit group control.
Use Cases
Ducted Supply and Exhaust Air
Ventilation for underground machine rooms and equipment rooms
Building Fresh Air and Exhaust Systems
Local exhaust ventilation in industrial workshops
Pengke PLFB Centrifugal Supply and Exhaust Fan Unit Selection Parameter Table
← Swipe left or right to view full parameters; first column is fixed
| Parameter | Numeric | Description |
|---|---|---|
| Max Airflow | 100000m³/h | Series limit, corresponding to the maximum impeller setting |
| Maximum Pressure | 4500 Pa | Maximum static pressure (series) |
| Maximum Static Pressure Efficiency | 79% | Sample Label Value |
| Maximum total pressure efficiency | 83% | Sample Label Value |
| Impeller Diameter | 250mm~1250mm | Series Coverage |
| Impeller Material | Aluminum Alloy, Composite Materials, Carbon Steel, Stainless Steel | Select by medium conditions |
| Structural Form | Monocoque chassis with quick-release maintenance design | Fan and enclosure supplied as a complete unit |
| API Format | The housing comes with built-in inlet and outlet flanges. | Directly connect to duct systems |
| Drive Type | EC Electronically Commutated Motors / AC Motors | EC type supports stepless speed control and group control |
| Ingress Protection Rating | IP4 | Indoor Standard Environment |
| Verify | CE, AMCA (optional) | AMCA performance certification available upon request |
The "Impeller Diameter vs. Airflow Ranges" table provides reference intervals based on the maximum performance of the PLFB series (100000m³/h, 4500Pa) using proportional scaling for preliminary model selection. Final selection must be verified against manufacturer performance curves and site duct resistance calculations.
Download
Pengke PLFB Centrifugal Supply and Exhaust Fan Unit (EC/AC)Product Catalog (PDF) – Download for full technical specs, installation dimensions, and selection tables.
Pengke PLFB Centrifugal Supply and Exhaust Fan Unit (EC/AC)Product Catalog
PDF Document · Free Public Download
