Panbu ElectricPanpu Factory Automation Monitoring System (SCADA)

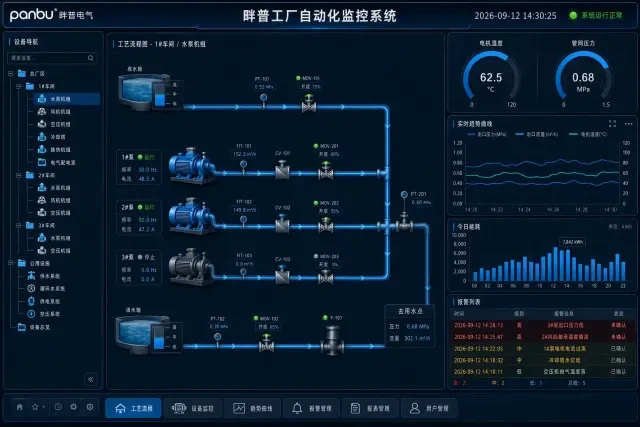

Panpu Factory Automation Monitoring System (SCADA) integrates automatic control, manual control, and remote monitoring. Leveraging PLCs, host computers, DCS units, and various graphical control software, it displays production and equipment status through intuitive HMI screens and real-time sensor data visualization. The typical architecture connects multiple PLC stations (PLC1~PLC4) to the host computer and operator stations via Profibus-DP or Ethernet. The host computer links to a switch and video recorder, while field cameras enable video integration. Operator stations output via HDMI to video walls for centralized display and can connect to printers for report generation. The system supports hierarchical monitoring of high-voltage and low-voltage equipment. It allows screen and permission segmentation by process stage, enabling tiered alarm notifications, historical data retrieval, and trend curve analysis. Ideal for factory central control rooms, water utility command centers, and remote environmental facility monitoring.
Technical Specifications
- System ComponentsPLC station, host computer, monitoring workstation, video wall, switch, DVR, camera
- Control ModeIntegrated automatic, manual, and remote monitoring control
- Communication MethodEthernet, Profibus-DP, RS485
- DisplayHDMI to Video Wall – Multi-screen Display
- Data FeaturesDynamic sensor data display, historical data query, and trend curves
- Alarm FunctionAlert grading, push notifications, and logging
- Peripheral InterfacesPrinter report output
- Monitoring ScopeHierarchical monitoring of high-voltage and low-voltage devices
Key Advantages
Integrated automatic control, manual control, and remote monitoring
The graphical control interface provides an intuitive visual representation, with real-time display of sensor data.
Multiple PLC stations networked via Profibus-DP or Ethernet
Supports video synchronization and hard drive recording storage
Tiered alert notifications with traceable historical data and trends
Organize screens and permissions by process stage.
Use Cases
Factory Central Control Room Production Monitoring
Water & Environmental Protection Facility Central Control Center
Remote Monitoring of Pump Stations and Storage Pools
Monitor Production Line Equipment Status
Panpu Factory Automation Monitoring System (SCADA) Selection Parameters Table
← Swipe left or right to view full parameters; first column is fixed
| Scale | PLC Station Count Reference | Monitoring Point Reference | Show Settings | Typical Use Cases |
|---|---|---|---|---|
| Small | 1~2 stations | ≤500 | Single Operator Station + Single Screen | Single-unit generators, small pump stations |
| Medium | 3~4 stations | 500~2000 o'clock | Operation Station + Video Wall (2–4 screens) | Workshop-level centralized monitoring |
| Large | 5~8 stations | 2000–8000 o'clock | Multi-station + Video Wall (4~8 screens) | Factory Central Control Center |
| Multi-site | 8 or more sites, or across multiple factories | 8000 and above | Centralized Control Center Video Wall + Local Stations at Each Plant | Group-wide Unified Operations & Maintenance |
The monitoring tiering, communication protocol configuration, and deployment options in the table are selection references based on typical project conditions. Actual point counts, screen quantities, and server configurations must be calculated according to the specific process stages and equipment list for each project.
Download
Panpu Factory Automation Monitoring System (SCADA)Product Catalog (PDF) – Download for full technical specs, installation dimensions, and selection tables.
Panpu Factory Automation Monitoring System (SCADA)Product Catalog
PDF Document · Free Public Download
