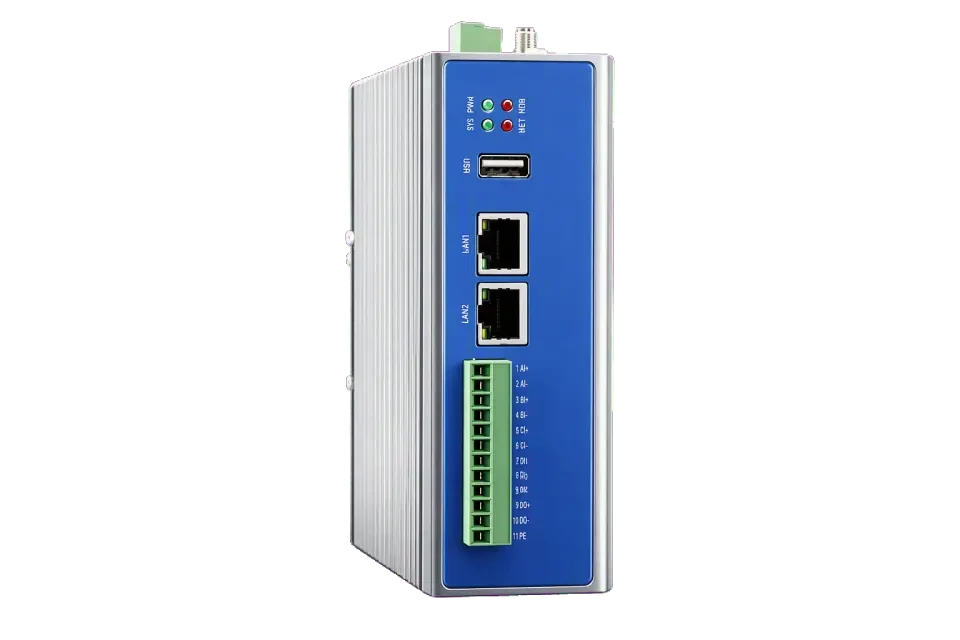

Panbu ElectricPanpu IoT Controller and Data Acquisition Terminal
Panpu IoT Controller is a self-developed data acquisition and communication terminal that plugs into the IoT cloud platform with zero setup. Supporting multiple communication methods and system expansion options, it collects device data and unifies disparate protocols across vendors into a single, platform-compatible format—solving integration challenges caused by protocol incompatibility. Once connected, users can monitor and manage devices from mobile or PC interfaces. Combined with the cloud platform's alert notification system, operations teams can track device status and respond to issues remotely without on-site presence—ideal for remote data collection at distributed sites, unmanned pumping stations, and environmental facilities.
Technical Specifications
- Connection MethodPlug-and-play, ready to connect to IoT cloud platforms.
- Communication MethodMultiple communication options available (including 4G, Ethernet, RS85)
- Extendable CapabilitiesSupports multiple system extension methods
- Core FeaturesDevice Data Collection and Communication Protocol Integration
- AdminView and manage device status on mobile and PC
- Ingress Protection RatingIP4
- Complementary capabilitiesIntegrate with cloud platform alert push notifications
Key Advantages
Plug-and-play with minimal on-site setup.
Supports multiple communication methods and system expansion options
Integrate communication protocols for multi-vendor devices
View and manage device status on both mobile and desktop.
Optimized for distributed sites and unattended scenarios
Integrate with cloud platform alert push mechanisms
Use Cases
Data collection for distributed pump stations and storage tanks
Unattended Remote Monitoring of Environmental Facilities
Unified access for multi-vendor device protocols
Retrofitting legacy systems with IoT capabilities
Panpu IoT Controller and Data Acquisition Terminal Selection Parameter Table
← Swipe left or right to view full parameters; first column is fixed
| Scale | DI/DO Point Reference | AI/AO Point Reference | Serial Port Count Reference | Typical Use Cases |
|---|---|---|---|---|
| Mini | ≤8 | ≤4 lanes | 1 RS485 | Single Device Status Collection |
| Small | 8~32 o'clock | 4–8 lanes | 1~2 RS485 ports | Small pump station, single process stage |
| Medium | 32~64 o'clock | 8–16 lanes | 2~4 RS485 ports | Workshop-level multi-device data collection |
| Large | 64 and above | 16 or more lanes | 4 or more channels, or expansion modules | Whole-line or multi-site data collection |
The table provides selection references for data acquisition scale tiers, communication methods, and expansion configurations based on typical project operating conditions. Actual point counts, protocol types, and installation methods must be calculated according to the on-site equipment list.
Download
Panpu IoT Controller and Data Acquisition TerminalProduct Catalog (PDF) – Download for full technical specs, installation dimensions, and selection tables.
Panpu IoT Controller and Data Acquisition TerminalProduct Catalog
PDF Document · Free Public Download
