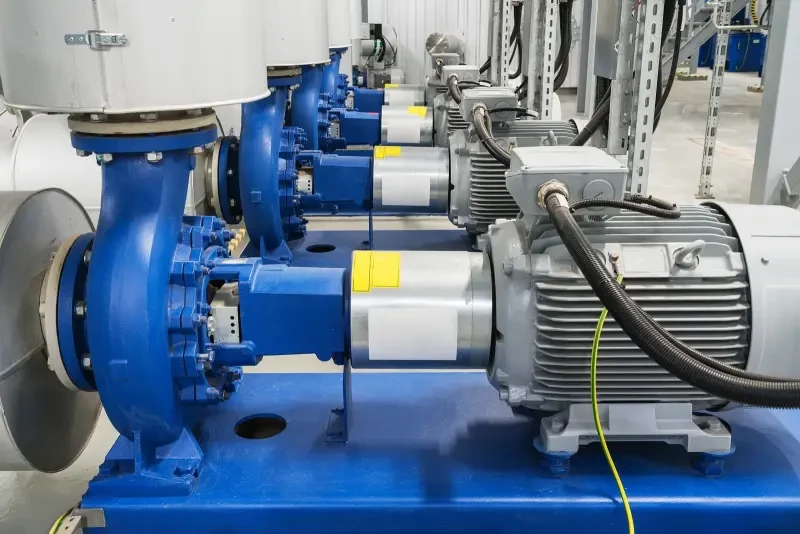

Permanent Magnet/Synchronous Reluctance Motor Energy Efficiency Retrofit
Replace traditional induction motors with permanent magnet synchronous and permanent magnet reluctance motors, precisely matching load conditions to reduce equipment energy consumption at the source. Our end-to-end service covers on-site survey, selection and integration, installation and commissioning, and energy savings verification—ensuring minimal disruption to your production schedule.
Use Cases:Continuous-duty loads such as chemical fiber, injection molding, and air compressors
Solve pain points
Solution Composition
PROCESS
Service Process
- 01
STEP01
On-site survey
- 02
STEP02
Selection Match
- 03
STEP03
Implementation
- 04
STEP04
Energy Saving Verification
BENEFITS
Plan Benefits
Returns01
Motor efficiency increased to over 96%
Returns02
Overall power-saving rate: 20%–40%
Returns03
Payback period: 18-24 months
Returns04
Significantly improved device stability
Calculation Basis: Energy efficiency grades and efficiency limits are referenced from GB 18613-2020 "Limits of Energy Efficiency and Energy Efficiency Grades for Electric Motors" and IEC 60034-30-1:2014. Product rated efficiency values are sourced from Wolong Electric Drive, JUMO, original product catalogs, and factory test reports. The energy-saving rate range is derived from statistical analysis of actual on-site measurements before and after retrofitting in Panpu's delivered projects under identical operating conditions. Actual performance may vary based on load rate, annual operating hours, and specific operational conditions.
