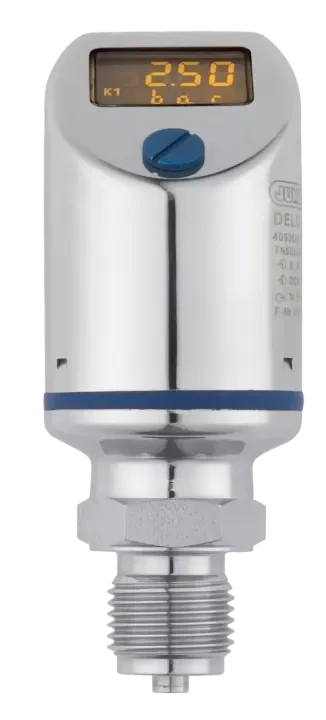

JUMO Smart Pressure and Differential Pressure Transmitter

p20Pro Pressure Transmitter (Model 403525, featuring German ultra-high-purity monocrystalline silicon chip, unique dual Wheatstone bridge design with increased chip thickness for reliable accuracy and excellent long-term stability; zero range migration available with multiple communication options; intelligent static pressure and temperature compensation protects against thermal, static, and overpressure effects to minimize field measurement error; explosion-proof designs Ex ia IIC T6 Ga, Ex db IIC T4~T6 Gb, Ex tb IIIC T80~130°C Db; three built-in buttons for quick local adjustment; external key configuration possible in hazardous areas without removing the protective cover; 5-digit backlit LCD digital display; built-in Bluetooth allows direct wireless connection via smartphone or tablet using APP software for configuration, plus HART interface for debugging; housing in cast aluminum or stainless steel (non-explosion-proof models); range -1~400 bar; turndown ratio 1:4; output 4~20mA/RS485; process connections: threaded/flanged/diaphragm seal; diaphragm materials: 316L/Hastelloy C-276/Tantalum/Gold-plated, etc.; static pressure level measurement suitable for atmospheric-vented tanks without negative pressure, calculating height via p=ρgh) delta p20Pro Differential Pressure Transmitter (Model 403522, available as differential, single-flange, or double-flange units for high static pressure applications in process industries; withstands static pressures up to 40 MPa; accurately measures differential pressure and converts it to 4~20 mA current signal; supports configuration and networking via HART and other standard protocols; high-purity monocrystalline silicon sensor chip with minimum range span of 500 Pa and stable output; ranges from -10~10 mbar to -100~100 bar; capillaries can be filled with various fluids per application requirements, such as FDA-compliant white mineral oil or silicone oil resistant up to 300°C; differential pressure level measurement suitable for sealed tanks, calculating height based on pressure difference; compatible with 316L membrane flange seals and isolation diaphragm cells 409774~409786 series to protect instruments and sensors in challenging conditions including contamination, high viscosity, clogging, corrosion, toxicity, and high heat; offers various diaphragm materials to adapt to complex operating environments) dTRANS p20 Series, dTRANS p35, and Wtrans P (dTRANS p20 Process Pressure Transmitter Models 403025/26; dTRANS p20 DELTA Differential Type 403022/23, including Ex d explosion-proof models; high precision with adjustable settings; stainless steel diaphragm and housing; robust aluminum or stainless steel housing; standard LCD display; rotary knob or membrane keys for quick startup; operable within Ex zones without opening the enclosure; gauge/absolute pressure ranges 0 mbar~600 bar with accuracy 0.05%; differential pressure 1 mbar~100 bar with accuracy 0.07%; medium temperature -40~+200°C; output 4~20 mA 4-wire HART; process connections: threaded/hygienic (EHEDG compliant)/JUMO PEKA/diaphragm seal; certifications: DNV, ATEX) dTRANS p35 Pressure Sensor with IO-Link (Model 402058; integrated diagnostics enable better planning of sensor usage and replacement; parameter data transfers from the host system during replacement for fast commissioning; fast data conversion COM 3 (230.4 kBaud); gauge/absolute pressure ranges 0 mbar~600 bar; medium temperature -25~+125°C; ambient temperature -40~+85°C; 2 digital switch outputs (SIO mode); cycle time 2ms; protection rating IP65/IP67; multiple threaded and hygienic process connections; applications: food industry, construction machinery, packaging, and process automation) JUMO Wtrans P Wireless Pressure Transmitter (Wirelessly acquires measurements for pressure, temperature, humidity, etc.; operates on European radio frequency 868.4MHz and US/Canada frequencies 915MHz; ideal for mobile/rotating measurement points and fixed points requiring interference-free transmission where cabling is difficult; each receiver can accept signals from 16 different transmitters).
