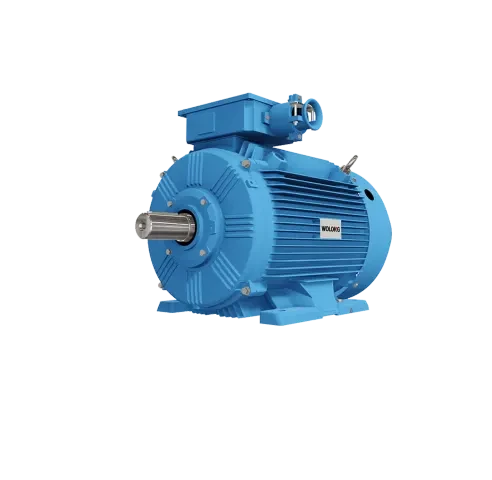

WOLONGWolong Electric Drive TYFB5 Series Dust-Ex Proof Permanent Magnet Motor
Manufactured by Wolong Electric Drive, the TYFB5 series dust-proof explosion-proof variable-frequency permanent magnet synchronous motor meets IE5 efficiency class and GB1 energy-saving requirements per IEC60034-30-2. Its explosion protection rating is Ex tb ⅢC T130℃. Designed with a dust-ignition-resistant enclosure, it is ideal for conductive dust environments and suitable for Zone 21 and Zone 22. Driven by a variable frequency drive, the motor delivers stable constant torque at low speeds, offers a wide speed range, and maintains high efficiency across its entire operating range. All frame sizes match induction motors in mounting dimensions and comply with IEC and national standards, enabling direct replacement installation. Frame sizes range from H80 to H355, with rated power from 0.37 to 375 kW. Rated speeds include three options: 3000r/min, 1500r/min, and 1000r/min rpm. Standard rated voltage is 380V, with optional 400V or custom configurations available upon request. Key features include a large terminal box, sleek design, high efficiency, low noise, low vibration, reliability, safety, and ease of maintenance. Optional iMotorLinx (Shunzhi Cloud) industrial internet digital services enable data collection from both the motor and drive, supporting remote system control, real-time monitoring, and fault diagnostics.
Technical Specifications
- Explosion-proof markingEx tb IIIC T130°C (Dust-ignition-proof enclosure; suitable for conductive dust environments; for use in Zones 21, 22)
- Housing NumberH80~H355
- Rated Power0.37–37 5kW
- Rated Speed3000 / 1500 / 1000 r/min
- Rated Voltage380V (optional 400V or per customer requirements)
- Efficiency RatingIE5 & GB1 Grade
- Ingress Protection RatingIP65
- Insulation ClassClass F (H-class optional)
- Cooling MethodH80–H132 is IC411; H160–H355 is IC416 (optional: IC411)
- Installation MethodB3, B5, B35, V1 (optional: B14, B34, V6, etc.)
- Work scheduleS1 (optional S2, S3, etc.)
- Wiring methodY-connection; terminal box on the top right of the motor, rotates 90 degrees
- Corrosion Resistance RatingC3 (Optional: C4, C5, CX)
- Topcoat ColorLight Blue RAL5012 (Customizable)
- Ambient Temperature-20℃~+40℃ (customizable for temperatures up to 60℃ and down to -35℃), altitude up to 1000m
- Motor Protection Device (Optional)PTC, PTO, and PT100 thermistor protection with anti-condensation heating tape
Key Advantages
Dust explosion-proof and safe: Ex tb IIIC T130°C flameproof rating; prevents ignition of the housing by dust, suitable for 21 and 22 zones with conductive dust environments.
IE5 Ultra-High Efficiency: Meets IE5 efficiency class per IEC60034-30-2 and GB1 energy efficiency standard; delivers high efficiency across the entire speed range.
Wide constant torque range: Excellent low-speed constant torque performance and wide speed adjustment range under VFD drive.
Lower Noise: Up to 15dB(A) noise reduction compared to induction motors.
Significant Loss Reduction: Rotorless copper loss with permanent magnet excitation; efficiency and power factor improve more noticeably at low speeds and low torque.
Direct replacement: Mounting dimensions for all frame sizes match those of induction motors and comply with IEC and relevant national standards.
Kit Advantage: Supplied with Wolong VFDs; drivers come pre-loaded with motor parameters, eliminating self-learning calibration and simplifying supply chain and after-sales support.
Digital Operations & Maintenance (Optional): Connect to the Shunzhi Cloud iMotorLinx platform for remote control, status monitoring, and fault diagnosis.
Use Cases
Dusty environments such as flour and grain processing
Coal and mining dust environments
Metal Powder Processing
Chemical and Pharmaceutical Dust Workshop
Wood processing, textile industry
Energy efficiency retrofit of fans, pumps, and conveying and lifting equipment in 21 and 22 areas with conductive dust.
Select by Voltage
View rated currents for each voltage- Rated current range
- Convert current based on 380V
- Overwrite Selection Tiers
- Available for all series
For domestic low-voltage grid standards, 3 kW and below use Y connection, while over 3 kW uses Δ connection, suitable for most factory distribution scenarios.
- Rated current range
- Convert current based on 380V
- Overwrite Selection Tiers
- Available for all series
Rated current for this voltage condition is listed in the parameter table; verify against your site's power system during selection.
For the same model, output power, speed, efficiency, power factor, and torque remain constant regardless of voltage; only the rated current is adjusted using I = IN × 380 / U. Dual-voltage motor models (380/660V and 660/1140V) are switched via jumpers in the terminal box. The 1140V model is designed for high-voltage supply in underground coal mines and requires verification that its explosion-proof certification covers the application. Variable frequency drives (VFDs) are categorized by supply voltage; specify the site supply voltage, phase count, and frequency at the time of order.
TYFB5 Series Dust-Explosion-Proof Variable-Frequency Permanent Magnet Synchronous Motor Selection Parameter Table (380V)
← Swipe left or right to view full parameters; first column is fixed
| Model | Power (kW) | Rated Torque (N·m) | JiShu | Frequency (Hz) | Rated Speed (r/min) | Full Load Efficiency (%) | Power Factor | Rated Current (A) | Noise LpA dB(A) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| TYFB5-80M1-0.75-3000 | 0.75 | 2.4 | 4 | 100 | 3000 | 88.6 | 0.95 | 1.35 | 50 | 14.2 |
| TYFB5-80M2-1.1-3000 | 1.1 | 3.5 | 4 | 100 | 3000 | 89.8 | 0.95 | 1.96 | 50 | 16.3 |
| TYFB5-90S-1.5-3000 | 1.5 | 4.8 | 4 | 100 | 3000 | 90.9 | 0.95 | 2.64 | 55 | 20.1 |
| TYFB5-90L-2.2-3000 | 2.2 | 7 | 4 | 100 | 3000 | 91.8 | 0.95 | 3.83 | 55 | 22 |
| TYFB5-100L-3.0-3000 | 3 | 9.5 | 4 | 100 | 3000 | 92.6 | 0.95 | 5.18 | 62 | 30 |
| TYFB5-112M-4.0-3000 | 4 | 12.7 | 4 | 100 | 3000 | 93.3 | 0.95 | 6.86 | 65 | 38.7 |
| TYFB5-132S1-5.5-3000 | 5.5 | 17.5 | 6 | 150 | 3000 | 94 | 0.95 | 9.36 | 67 | 48.1 |
| TYFB5-132S2-7.5-3000 | 7.5 | 23.9 | 6 | 150 | 3000 | 94.5 | 0.95 | 12.7 | 67 | 49.3 |
| TYFB5-160M1-11-3000 | 11 | 35 | 6 | 150 | 3000 | 95 | 0.95 | 18.5 | 68 | 83.3 |
| TYFB5-160M2-15-3000 | 15 | 48 | 6 | 150 | 3000 | 95.3 | 0.95 | 25.2 | 68 | 93.2 |
| TYFB5-160L-18.5-3000 | 18.5 | 59 | 6 | 150 | 3000 | 95.6 | 0.95 | 30.9 | 68 | 100 |
| TYFB5-180M-22-3000 | 22 | 70 | 6 | 150 | 3000 | 95.9 | 0.95 | 36.7 | 70 | 122 |
| TYFB5-200L1-30-3000 | 30 | 95.5 | 6 | 150 | 3000 | 96.1 | 0.95 | 49.9 | 71 | 189 |
| TYFB5-200L2-37-3000 | 37 | 118 | 6 | 150 | 3000 | 96.3 | 0.95 | 61.4 | 71 | 200 |
| TYFB5-225M-45-3000 | 45 | 143 | 6 | 150 | 3000 | 96.4 | 0.95 | 74.7 | 73 | 246 |
| TYFB5-250M-55-3000 | 55 | 175 | 6 | 150 | 3000 | 96.5 | 0.95 | 91.2 | 75 | 333 |
| TYFB5-280S-75-3000 | 75 | 239 | 6 | 150 | 3000 | 96.6 | 0.95 | 124 | 77 | 422 |
| TYFB5-280M-90-3000 | 90 | 287 | 6 | 150 | 3000 | 96.7 | 0.95 | 149 | 77 | 459 |
| TYFB5-315S-110-3000 | 110 | 350 | 6 | 150 | 3000 | 96.8 | 0.95 | 182 | 78 | 765 |
| TYFB5-315M-132-3000 | 132 | 420 | 6 | 150 | 3000 | 96.9 | 0.95 | 218 | 78 | 787 |
| TYFB5-315L1-160-3000 | 160 | 510 | 6 | 150 | 3000 | 97 | 0.95 | 264 | 78 | 852 |
| TYFB5-315L-185-3000 | 185 | 589 | 6 | 150 | 3000 | 97.2 | 0.95 | 304 | 78 | 859 |
| TYFB5-315L2-200-3000 | 200 | 637 | 6 | 150 | 3000 | 97.2 | 0.95 | 329 | 78 | 879 |
| TYFB5-355M1-220-3000 | 220 | 700 | 6 | 150 | 3000 | 97.2 | 0.95 | 362 | 85 | 1294 |
| TYFB5-355M2-250-3000 | 250 | 796 | 6 | 150 | 3000 | 97.2 | 0.95 | 411 | 85 | 1311 |
| TYFB5-355L1-280-3000 | 280 | 891 | 6 | 150 | 3000 | 97.2 | 0.95 | 461 | 85 | 1668 |
| TYFB5-355L2-315-3000 | 315 | 1003 | 6 | 150 | 3000 | 97.2 | 0.95 | 518 | 85 | 1691 |
| TYFB5-3551-355-3000 | 355 | 1130 | 6 | 150 | 3000 | 97.2 | 0.95 | 584 | 85 | 1932 |
| TYFB5-3552-375-3000 | 375 | 1194 | 6 | 150 | 3000 | 97.2 | 0.95 | 617 | 89 | 1950 |
Data in the table is sourced from Wolong Group's product catalog for "TYFB5 Series Dust-Explosion-Proof Variable-Frequency Speed-Controlled Permanent Magnet Synchronous Motors." Rated voltage: 380V; Energy efficiency class: IE5; Explosion protection symbol: Ex tb ⅢC T130℃; Protection rating: IP65. Requires a compatible variable-frequency drive.
Download
Wolong Electric Drive TYFB5 Series Dust-Ex Proof Permanent Magnet MotorProduct Catalog (PDF) – Download for full technical specs, installation dimensions, and selection tables.
Wolong Electric Drive TYFB5 Series Dust-Ex Proof Permanent Magnet MotorProduct Catalog
PDF Document · Free Public Download
